Outdoor Fixed LED Displays

SMD Oudoor LED Display

  • High refresh rate, high brightness, wide viewing angle, no glare, and low attenuation offer better visual experience.
  • High grayscale image delivers more details.
  • Supports 360°arc splicing screen for naked-eye 3D display effect.

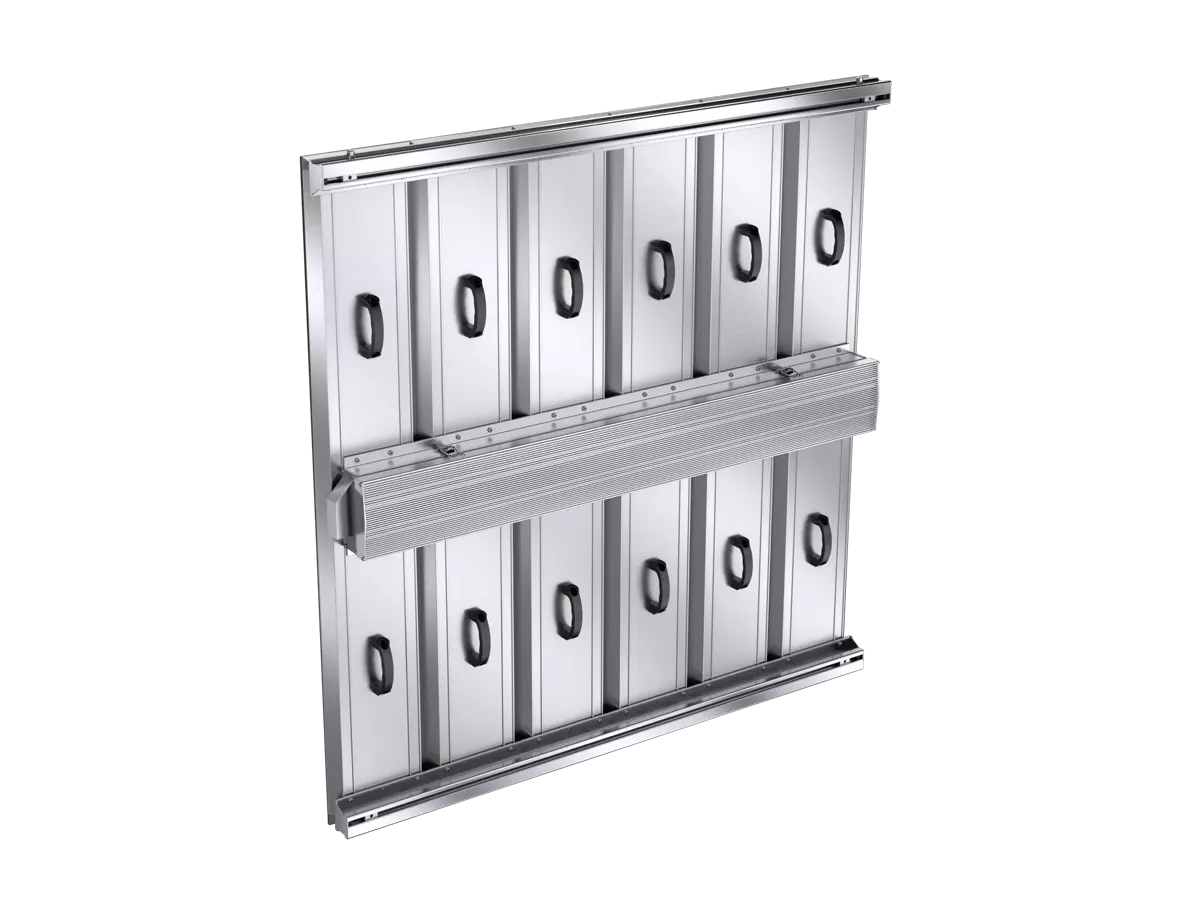

  • Aluminum alloy cabinet, light weight for quick installation.

Featured Detail

  • Modular design, supports front and rear maintenance, efficient and convenient.
  • Aluminum alloy shell, better thermal stability and heat dissipation.
  • CNC precision processing, high precision and good flatness.
  • IP65 protection level, can withstand harsh outdoor environment.

Pixel Pitch

2.5mm, 3mm, 4mm, 5mm, 6.67mm

Specifications
 Model No. P2.5 P3.076 P4 P5 P6.67
Module Resolution(W*H) 64*256 52*208 40*240 32*192 24*44
  Module Size(mm) 160*640 160*640 160*960 160*960 160*960

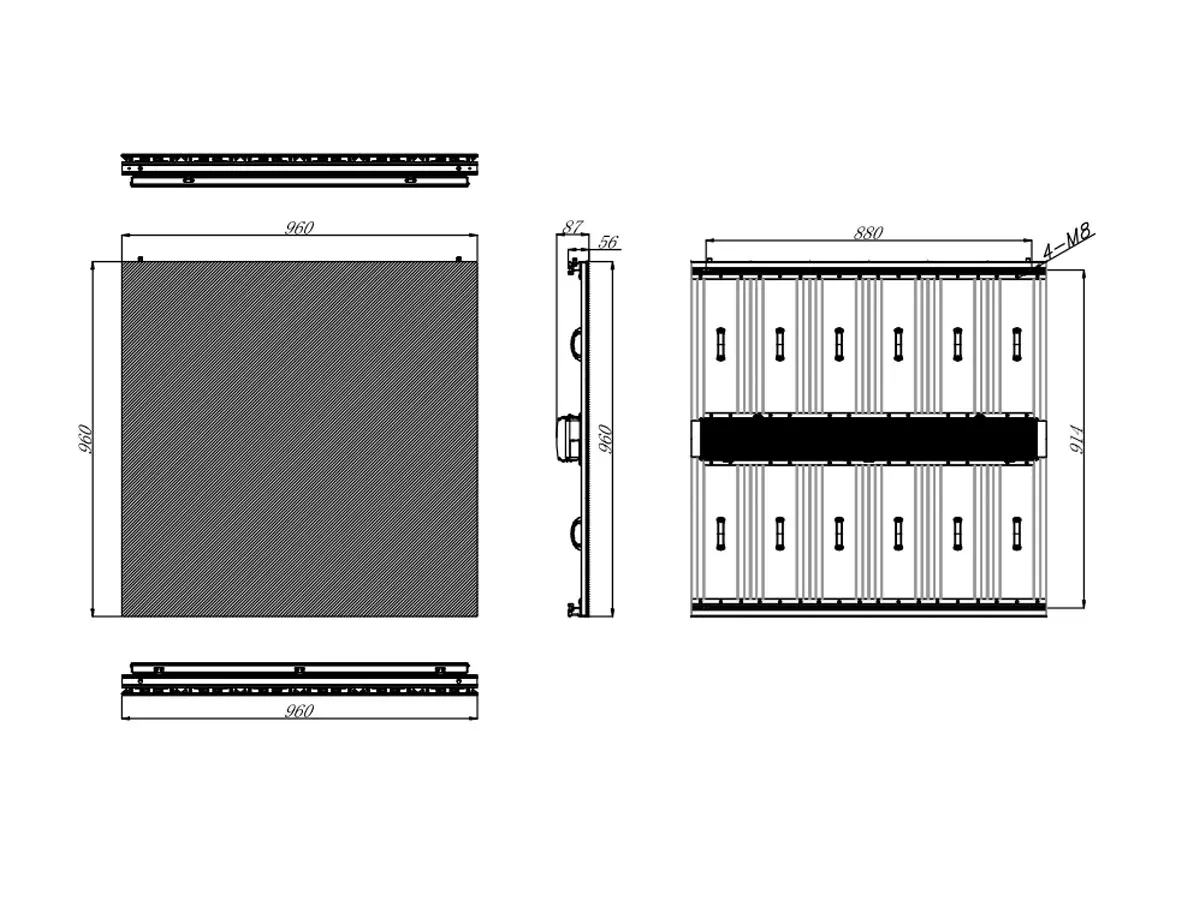

Cabinet Size(W*H*D)(mm) 640*640*85 640*640*85 960*960*87 960*960*87 960*960*87
  Pixel Density(pixels/m²) 160000 105625 62500 40000 22500
   Brightness (cd/㎡) 5000 5000 6000 6000 6000
  Viewing Angle
140°(H)/120°(V)
  Refresh Rate(Hz)
3840
IP Rating(front/back)
IP66
 Operating Life
≥100,000hours
 Certificate
CE, ROHS, FCC
