Flexible Film LED Screen

Flexible Film LED Display

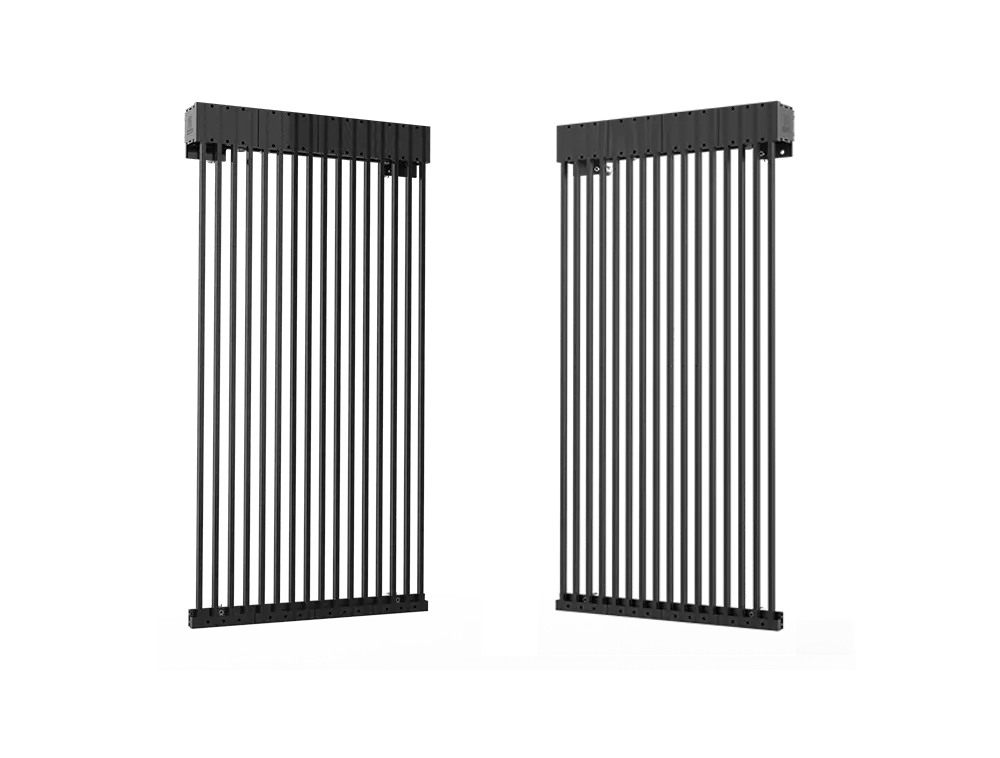

Curtain LED displays, also known as LED curtains, offer a captivating combination of flexibility, visual impact, and creative potential. They're a unique take on LED technology, providing a dynamic and immersive experience for a wide range of applications.

Outdoor Transparent LED
Display

  • Sleek,Lightweight Simplistic Design
  • Transparent LED layout
  • True Brilliant Colours
  • Dust and wATER rESISTANT
  • IP Rating(front/back): IP66
Specifcations
 Model No. GC 10.4 GC 15.6 GC15.6-31.25 GC20 GC25 GC25-50 GC31.25 GC31.25-50
  Pixel Pitch(mm) 10.416-10.416 15.6-15.6 15.6-31.25 20-20 25-25 31.25-31.25 31.25-31.25 31.25-50
  LED Arrangement 1*SMD2727 1*SMD2727 1*SMD2727 1*SMD2727 2*SMD2727 2*SMD2727 2*SMD2727 2*SMD2727
  Pixel Density(pixels/m²)
9216
4096
2048
2500
1600
800
1024
640
 Cabinet Dimensions(mm)
1000*500*76
1000*480*76
1000*500*76
 Transparency 40% 33% 66% 48%. 58% 79%
66%
 79%
  Max. Consumption 720W/m² 720W/m² 600W/m² 720W/m² 600W/m² 400W/m² 500W/m² 360W/m²
  Ave. Consumption 260W/m² 260W/m² 220W/m² 260W/m² 220W/m² 150W/m² 180W/m² 130W/m²
 Brightness   6000nits  6000nits   6000nits 6000nits 6000nits 4000nits 5000nits 3000nits
 Brightness level 256Level 256Level 256Level 256Level 256Level 256Level 256Level 256Level
 Installation
Outdoor
 Operating Life
≥100,000hours
 Certificate
CE, ROHS, FCC
