Holographic Invisible LED Screen

Holographic Invisible Screen

High definition,realinvisibility

Cabinet size(W*H*D) ：1199.2*500*77mm Cabinet Weight：3±0.5kg

Transparent and invisible whole screen

The whole screen is transparent without frame，It is seamlessly spliced in a large area，the back side is invisible without floodlight.

Holographic 3D suspension images

Display effect of 3D holographic and spatial suspension images.

High brightness & high contrast

8,000:1 (high contrast)

1200cd/m ² (high brightness),

dazzling and eye-catching.

Transparent and excellent image quality

Equally spaced pixel layout for high-definition image quality, static scanning with combined diver board for table images,16bit gray scale with exquisite colors.

Flexible

Standard module can be bent andskillful applications.

t is the best partner of curved glass and irregular screens.

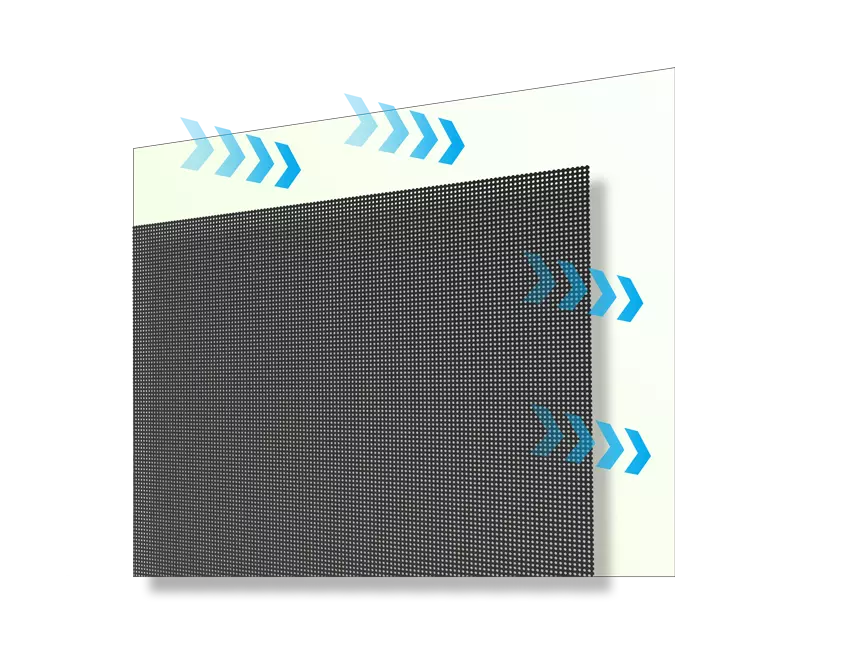

Minimal installation and maintenance

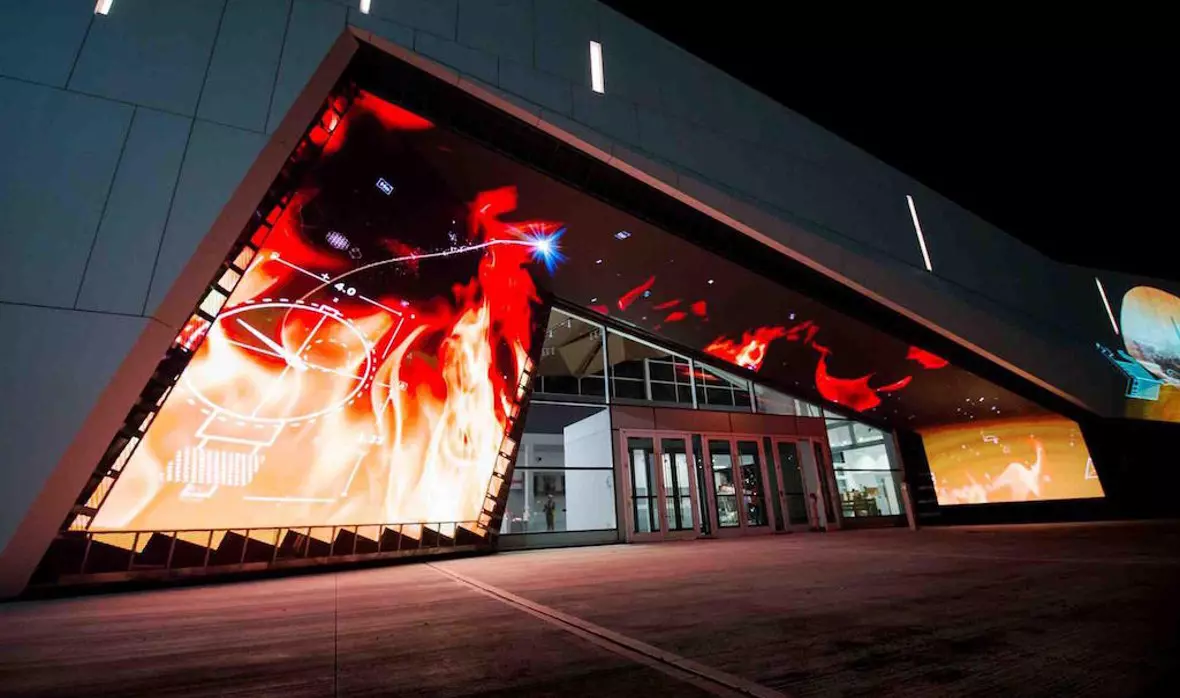

The product is modular and can be directly attached to the front or back side of transparent glass without damaging theoriginal structure of the building or affecting indoor lighting.

Specifcations
  Model No. QX3.9(Integrate lamp and driver) QX3.9(Lamp and driver separation)
  LED Type SMD1717 SMD1415
  Pixel Density(pixels/m²) 65536
  Brightness ≥1200cd/m²
  Cabinet Size(W*H*D) 1199.2*500*5mm(power box77mm)
  Cabinet Resolution 307*128
  Cabinet Weight 3±0.5kg
  Max.Power Consumption 720W/m² 680W/m²
  Ave.Power Consumption 260W/m² 220W/m²
  Operating Humidity 10%~65%RH
 Viewing Angle
H/V: 140°±10°
Refresh Rate ≥2880Hz
Operating Temerature -10°C~40°C
Storage Temp/Humidity -40°C~60°C,10%~60%RH
 Operating Life
≥100,000hours
 Certificate
CE, ROHS, FCC
