Indoor and Outdoor LED Display

Transparent Rental LED Screen

Indoor and outdoor Rental LED Displays: Enhancing Your Event Experience.Indoor rental LED displays offer a captivating way to elevate conferences, trade shows, exhibitions, and corporate events.

Features and Benefits

Transparent rental LED displays are a captivating and innovative technology that is gaining popularity in various sectors like retail, events, and architecture.

These displays offer unique advantages, making them a powerful tool for captivating audiences and enhancing brand presence.

Cabinet Size and Weight

Dimension(W*H*D): 1000*500*83mm Net Weight: 8±0.5kg

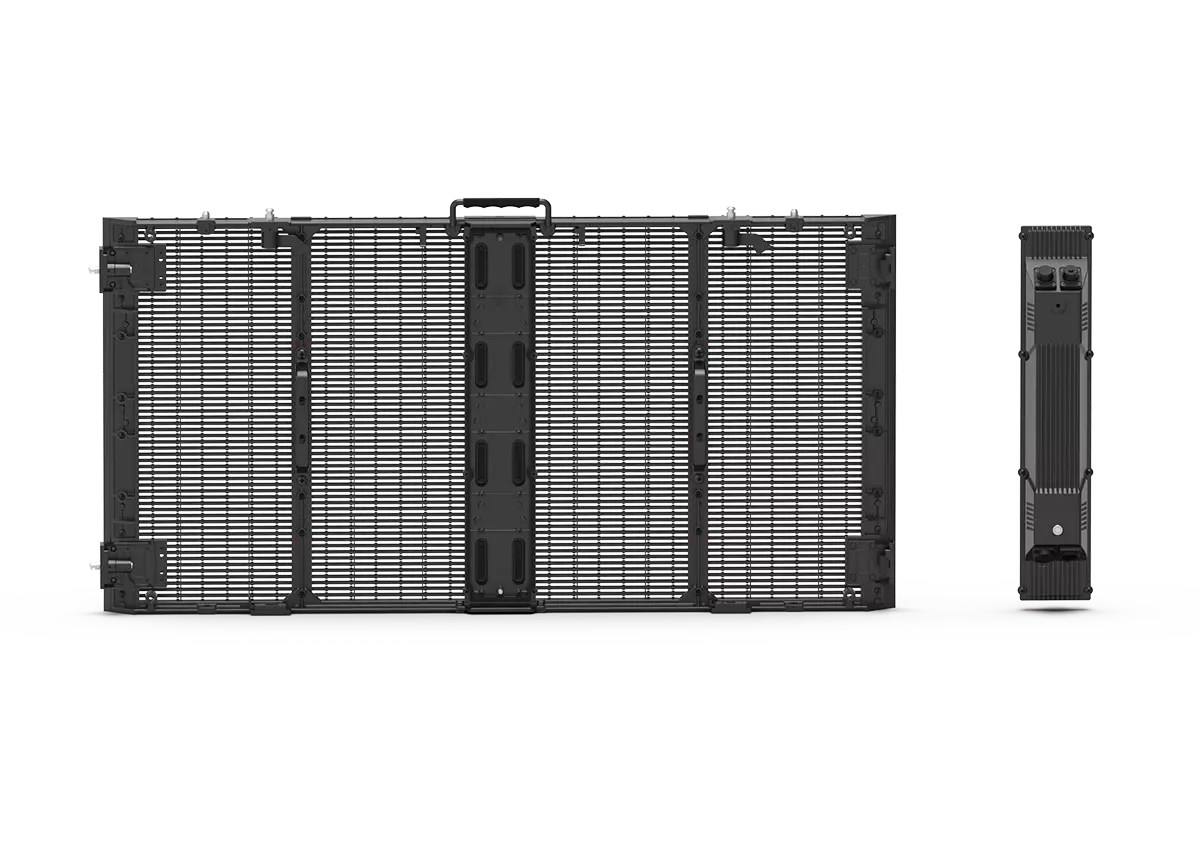

Easy Maintainance

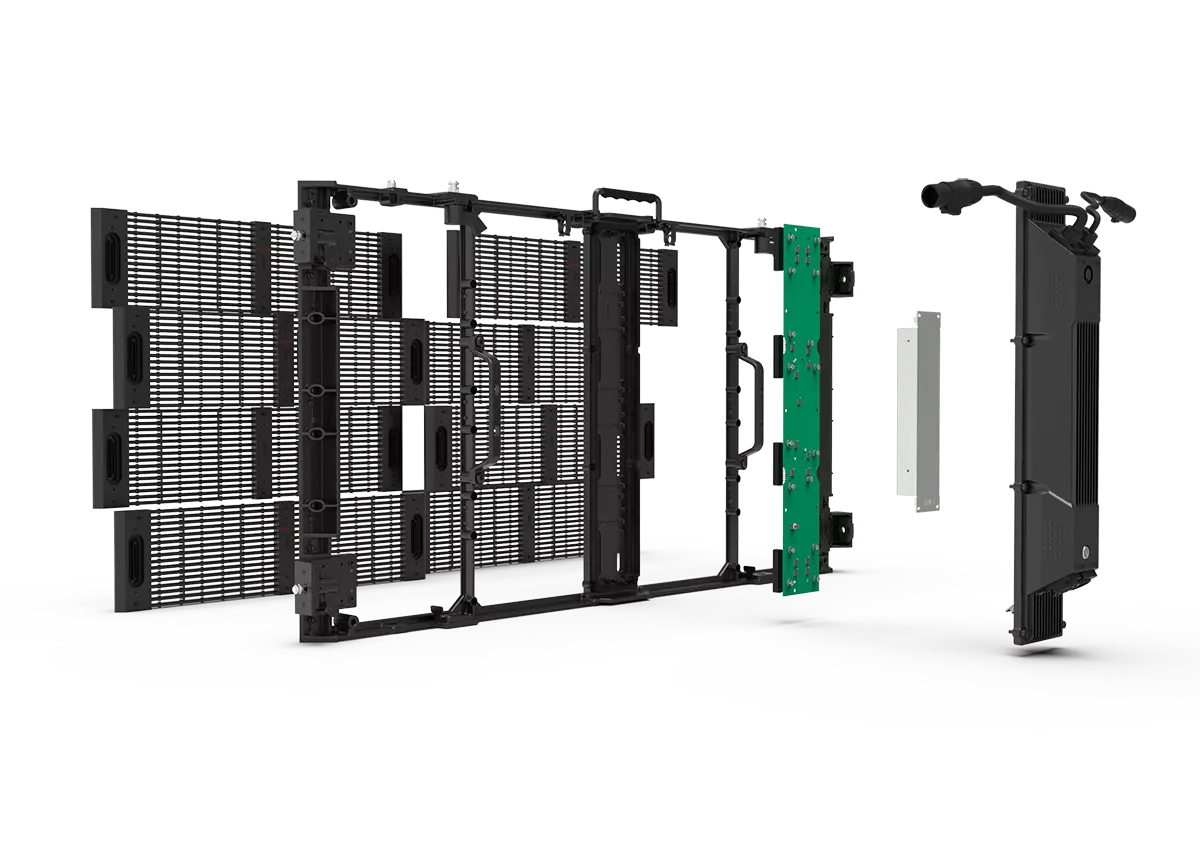

Rear box integrate with psu and RX card, High Efficient and Convenient maintainance

Product Detail

  • Whole black design
  • Slim cabinet 40% transparent ratio
  • Higher contrast ratio

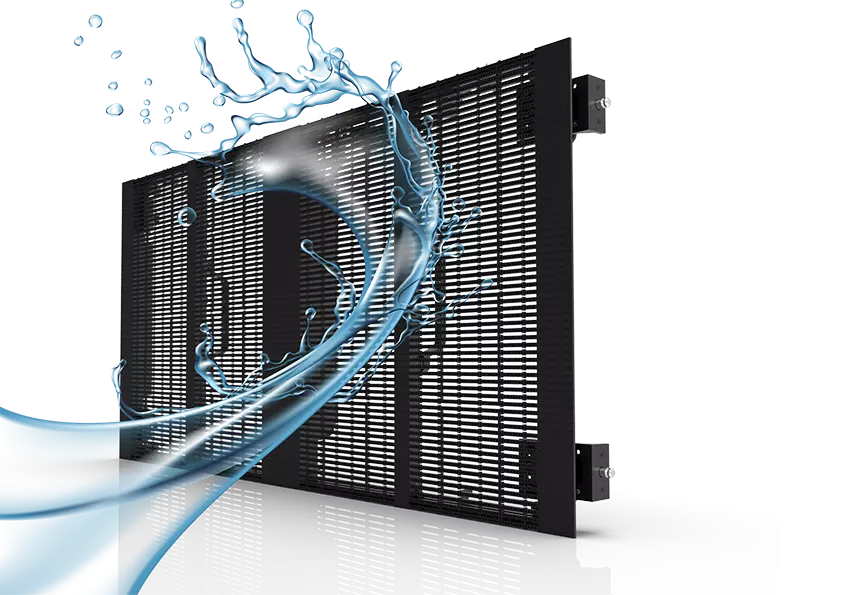

  • Water-proof

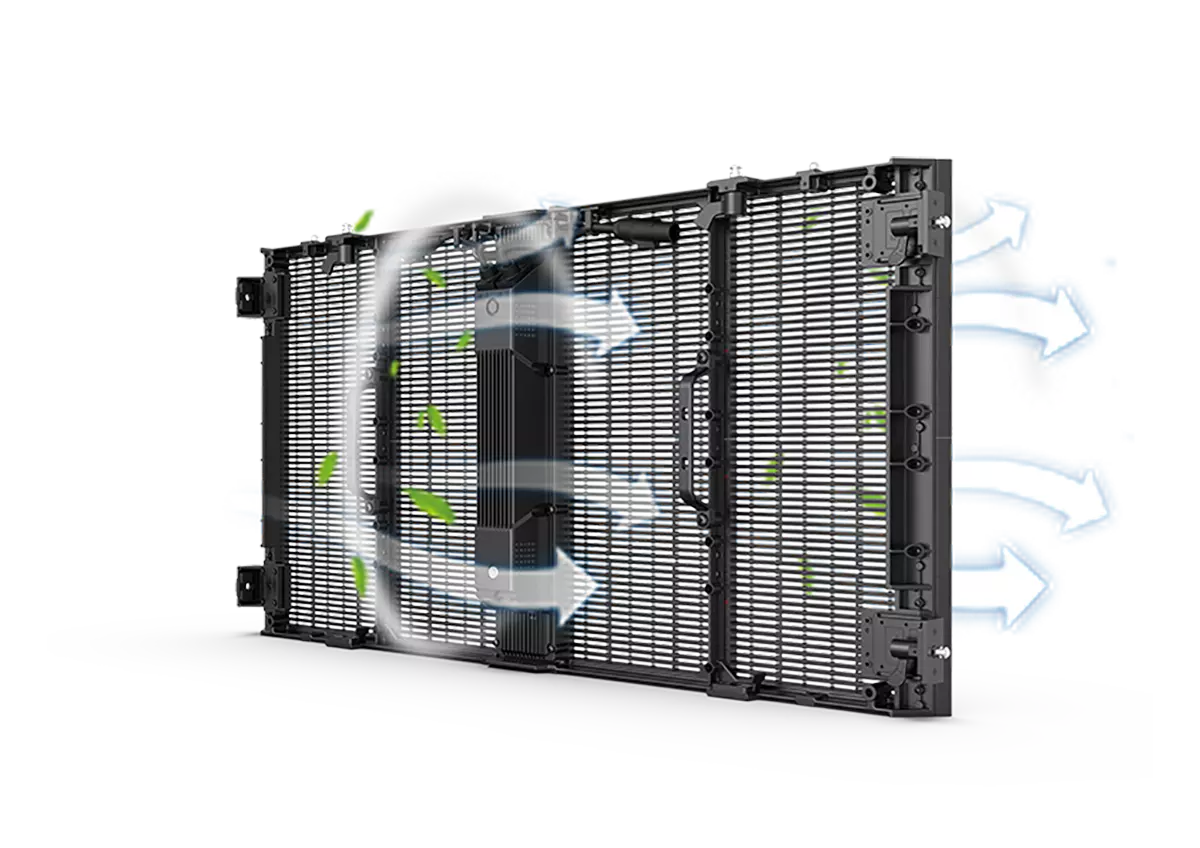

Low Wind Resistance

High Transparency

Multiple installation methods

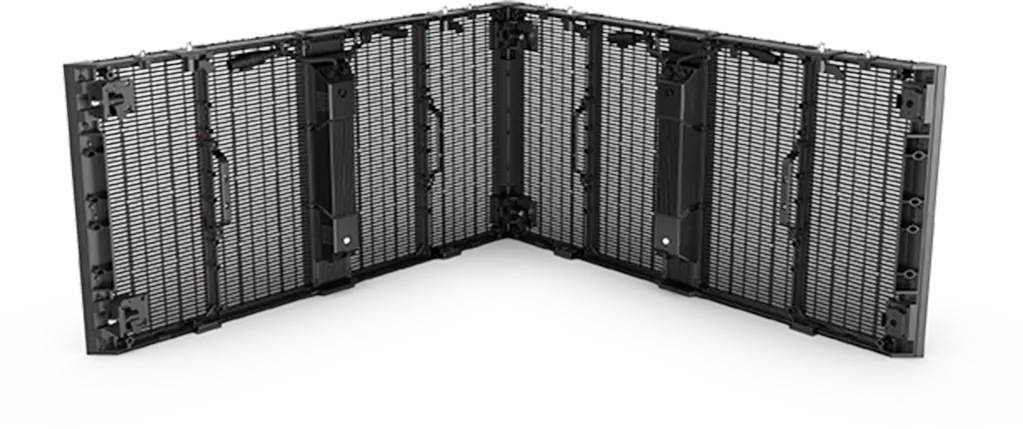

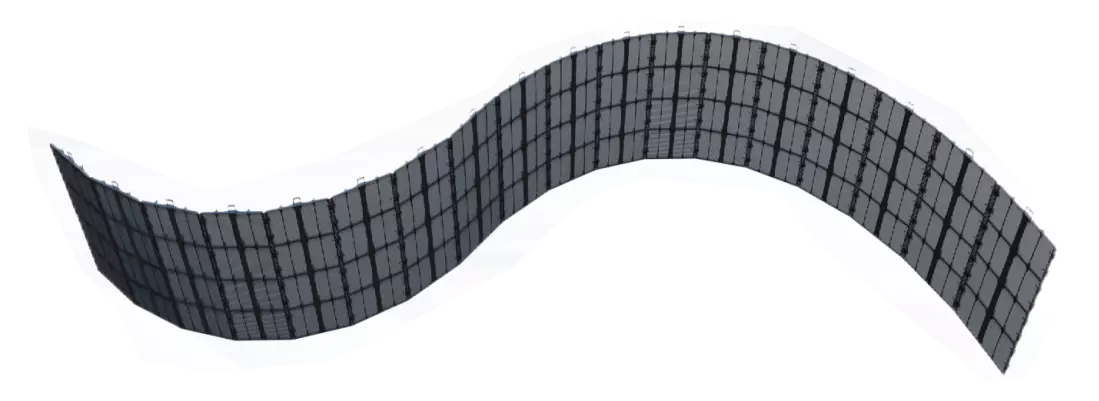

Convex and Concave ， ±10° ， ±2.5°@per adjust scale

90° connection via side lock，

Products Parameters

The parameter table is part of the parameters, for more information, please contact us

Specifcations
  Model No. TR 3.91-7.81
  Pixel Pitch .3.91-7.81mm
  Pixel Configuration SMD1415
  Pixel Density(pixels/m²) 32,768
  Color Temerature 6500-9500K
  Brightness 3000-3500cd/m²
  Cabinet Size(W*H*D) 1000*500*83mm
 Cabinet Resolution 256*6pixel
Cabinet Weight 8±0.5kg
Scan 1/8
 Gray Scale 14-16bit
 Max Power Consumption 68W/m²
 Average Power Consumption 240W/m²
  Operating Temp/Humidity -20℃-40℃
  Storage Temp/Humidity -40 - 60℃/10% - 60%
Curve  -10°/-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°/10°
  Viewing Angle 140°±10°
  Expected LED Lifetime (Max) 100,000 Hrs
