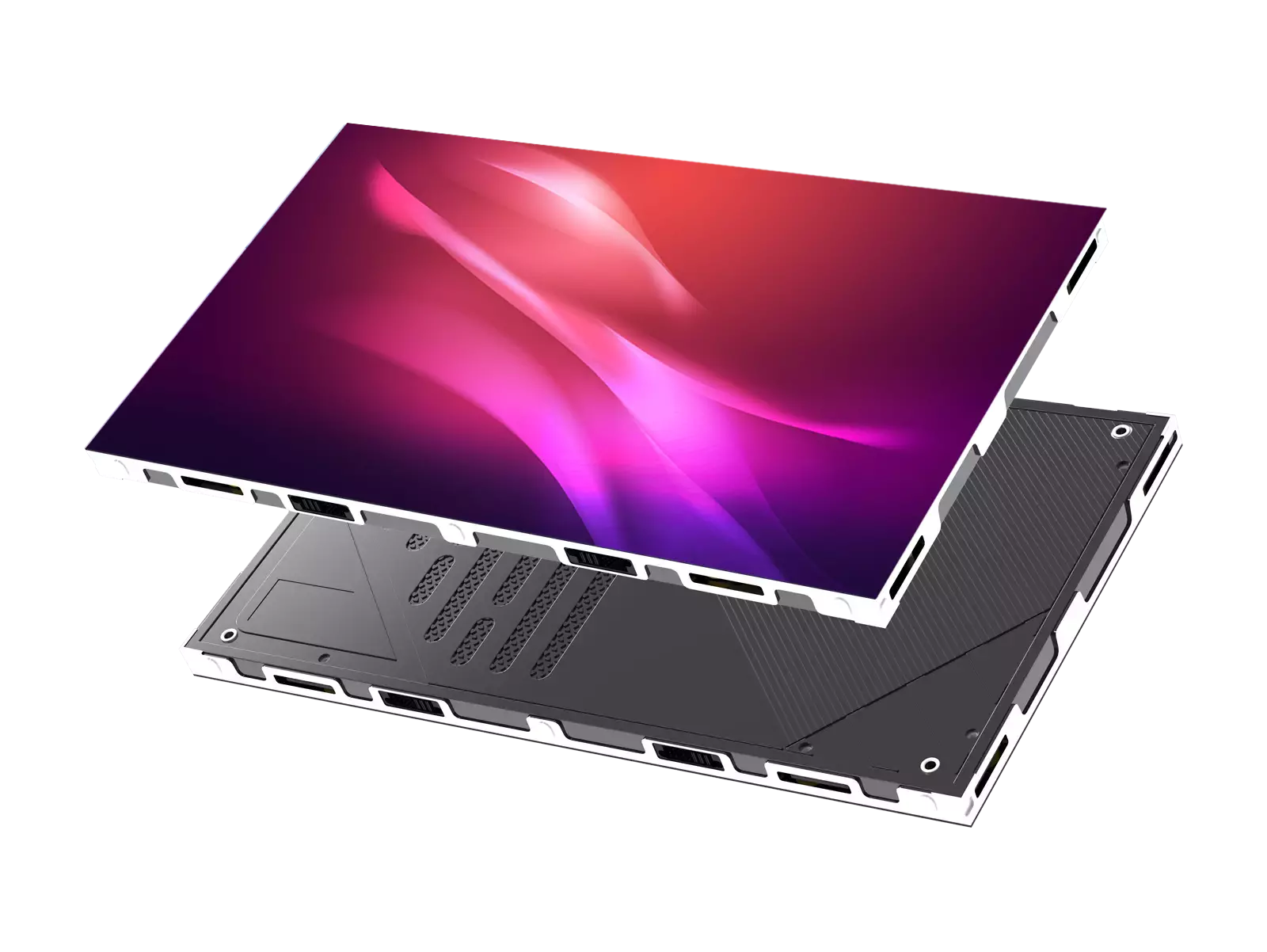

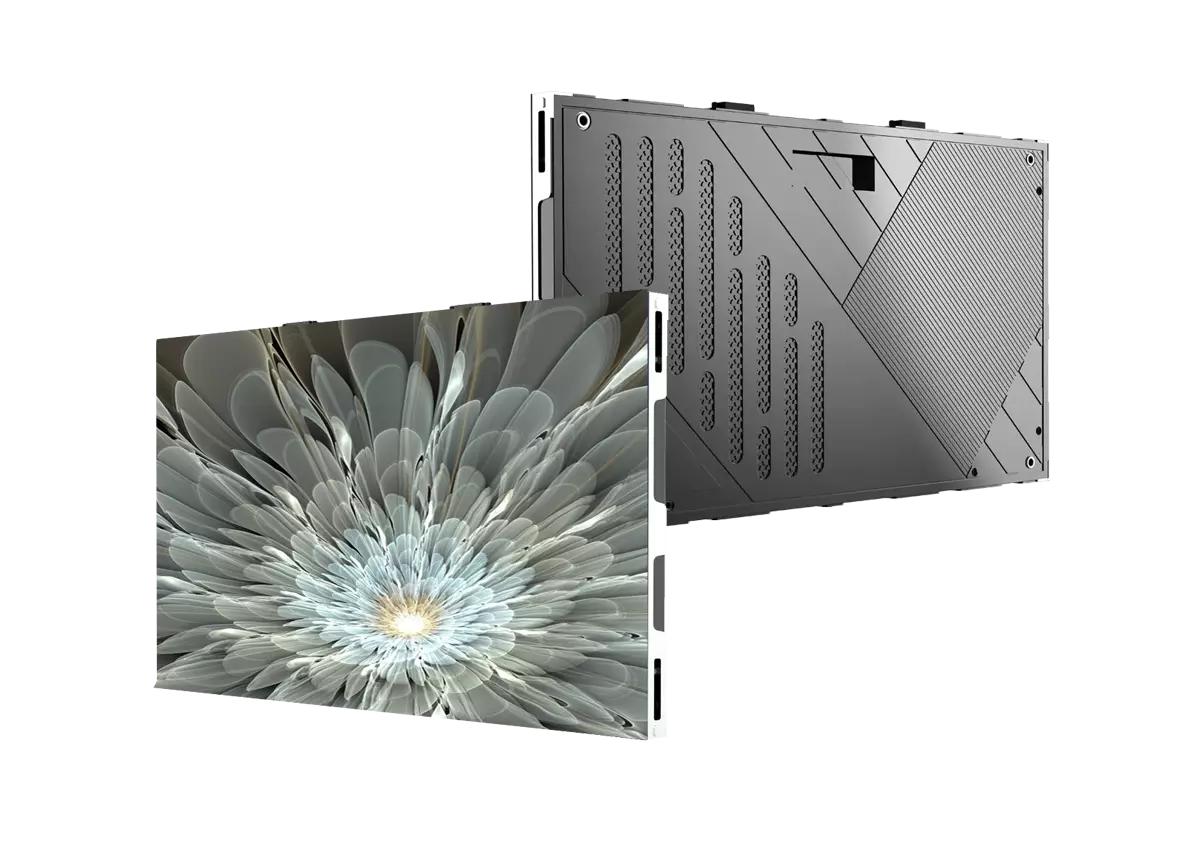

Indoor COB LED Displays G-COB

Excellent Color Contract Ratio

Indoor LED Display
G-COB

COB LED display screen adopts advanced flip-chip COB packaging technology, which has the characteristics of high reliability, high protection, high contrast, ultra-low power consumption, etc. It also occupies small space, has long service life and low maintenance cost.

The regular black SMD LED has the color contrast ratio of 5,000:1. However, our high-tech COB LED reaches a much higher color contract ratio up to 10,000:1. The color of our COB LED screen looks amazing.

Featured Detail

  • Adopting COB technology, the lamp surface is anti-collision and splash-proof, with protection grade
  • Adopting flip chip technology, no need for wire bonding, stable and reliable, high luminous efficiency, green and energy-saving
  • High contrast ratio, up to 20000:1
  • High grayscale, delicate and realistic images
  • The picture is uniform and consistent, without black lines, achieving true seamless splicing

Pixel Pitch

0.7mm, 0.9mm, 1.2mm, 1.8mm

Seamless Connection & 16:9 Aspect Ratio

The screen is gapless. Meanwhile, when we build a LED screen with 2K, 4K, 8K, or some other resolutions, we can still have a 16:9 screen aspect ratio.

Extraordinary Visual Effects

We adopt great PCB design and high quality LED material. With the high refresh rate(up to 3,840Hz) and gray scale(up to 14bits to 24bits) , the LED display can bring us amazing visual effects.

The light from our COB LED looks softer to our eyes. Meanwhile, when the COB LED screen is playing videos or images, the visual impact is more exquisite.

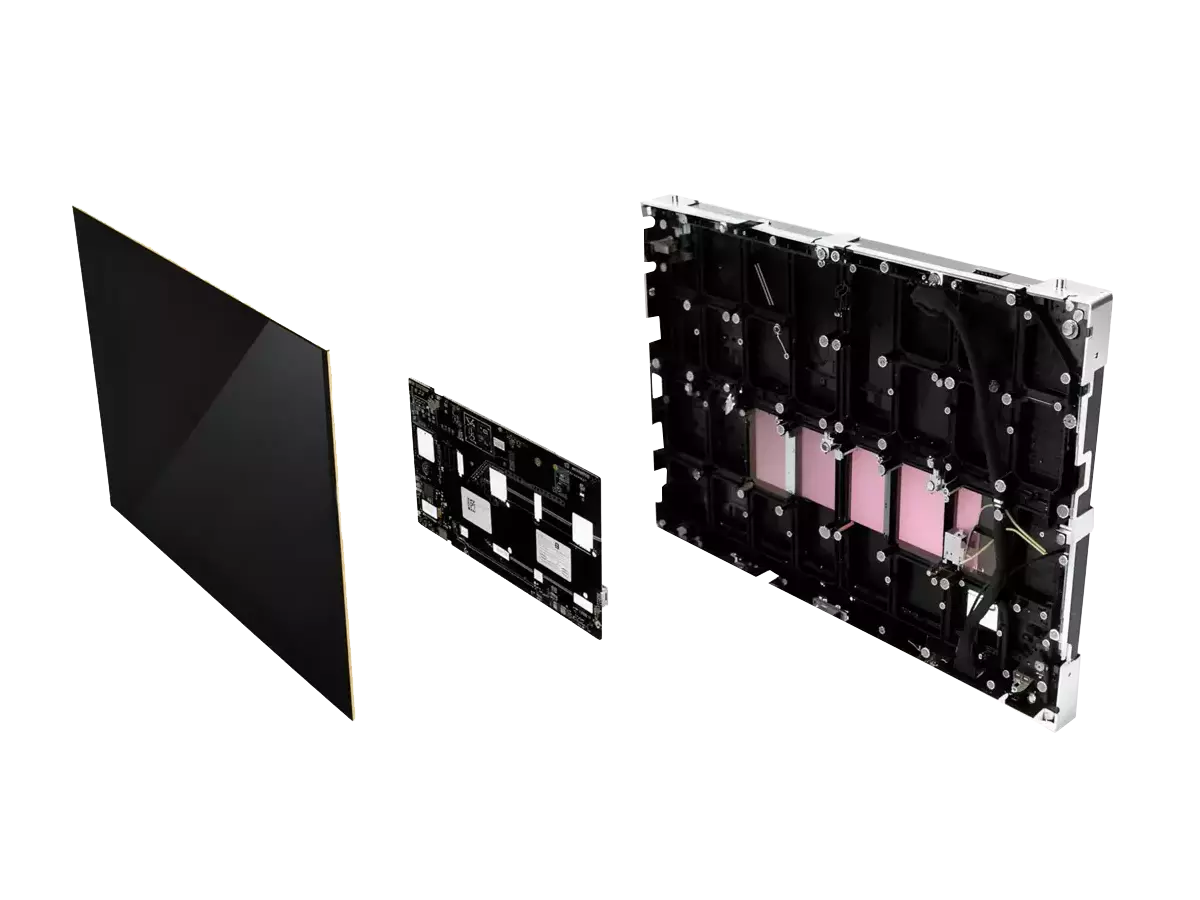

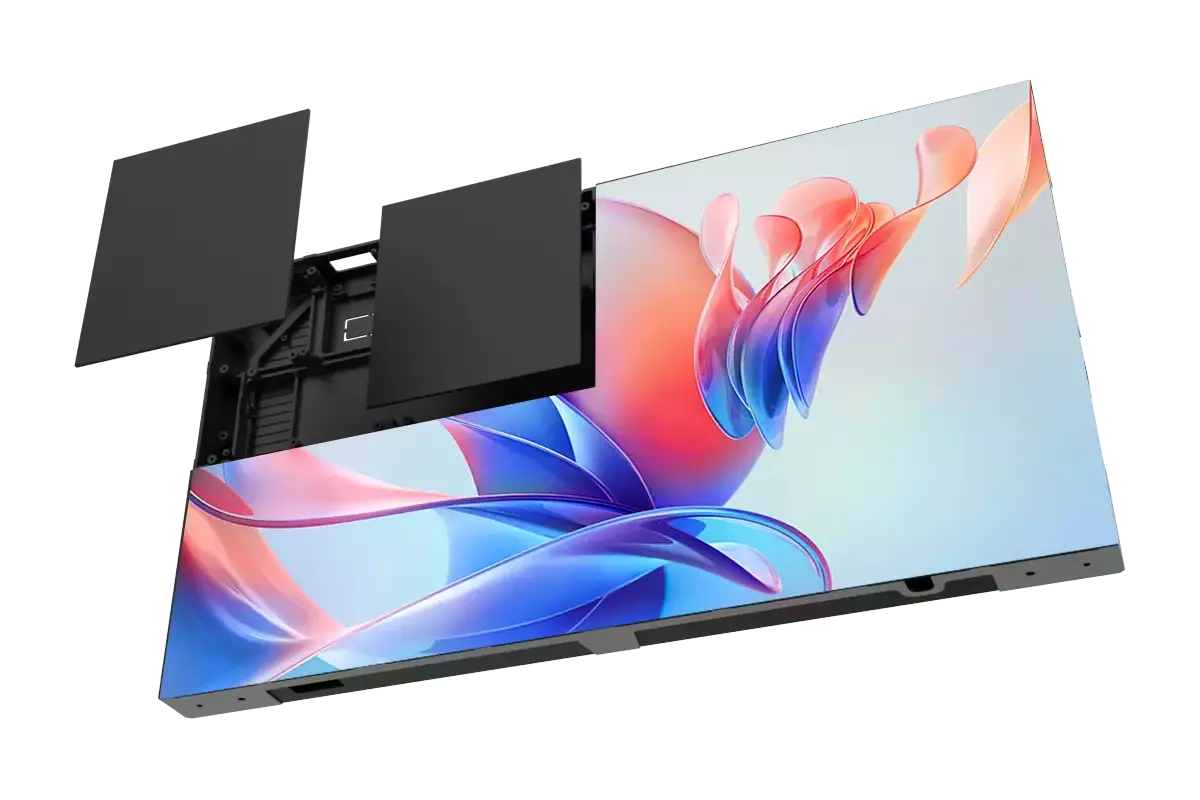

Strong Module for More Secure Installation & Maintenance

When the dust, or other dirt on the LED modules, you can clean it with duster easily. Meanwhile, the LED won’t get damaged by slight collision during the installation and transportation.

Longer Lifespan

Thanks to the flip chip technology wireless packaging technology, the heat dissipation for the LED is better, thus the LED works more secure. With the unique feature of the COB LED ( great reliability and high level surface protection) , the LED display ensures the perfect performance for more than 8 years.

Larger Viewing Angle and Lower Power Consumption

Glind G-COB Indoor LED screens have 140° horizontal and 140° vertical viewing angle. Whether viewed from the left/right sides or from the top/bottom of the screen, the image remains clear and uniform. And the power consumption is lower than regular LED display products.

G-COB Products Specifcations

The parameter table is part of the parameters, for more information, please contact us

  Model G-COB 0.937 G-COB 1.25 G-COB 1.56 G-COB 1.875
  Pixel Pitch 0.937mm 1.25 mm 1.56 mm 1.875 mm
  Pixel Configuration Four-in-one Gold Wire SMD1010 SMD1010 SMD1515
  Pixel Density(pixels/m²) 1,137,777 640,000 409,800l 284,444
  Module Size(mm) 150x168.75 150x168.75 150x168.75 150x168.75
  Module Resolution 160x180dot 160x180dot 96x108dot 80x90dot
  Cabinet Size(mm) 600x337.5 600x337.5 600x337.5 600x337.5
 Cabinet Resolution 640x360dot 480×270dot 384x216dot 320×180
 Gray Scale 16bit 16 bit 16 bit 16 bit
 Max Power Consumption 800W/m²
 Average Power Consumption 260W/m²
  Operating Temp/Humidity -20℃-60℃
  Storage Temp/Humidity -30 - 60℃/10% - 60%
  Brightness 600 - 800 nits
  Viewing Angle 140°/140°
  Expected LED Lifetime (Max) 100,000 Hrs
 Maintenance Front Service
Swipe left or right to view more content
