4K Indoor LED Displays G-SMD

Excellent Color Contract Ratio

Indoor 4K LED Display
G-SMD

Glind 4k indoor LED walls,Ultra HD seamless visuals with vibrant, true-to-life colors. Premium SMD technology delivers stable, flicker-free images for meeting rooms, retail & exhibition halls.

Customizable size, wide viewing angle, reliable indoor video wall solution, ideal for conferences, shopping malls, lobby signage and indoor events.

Featured Detail

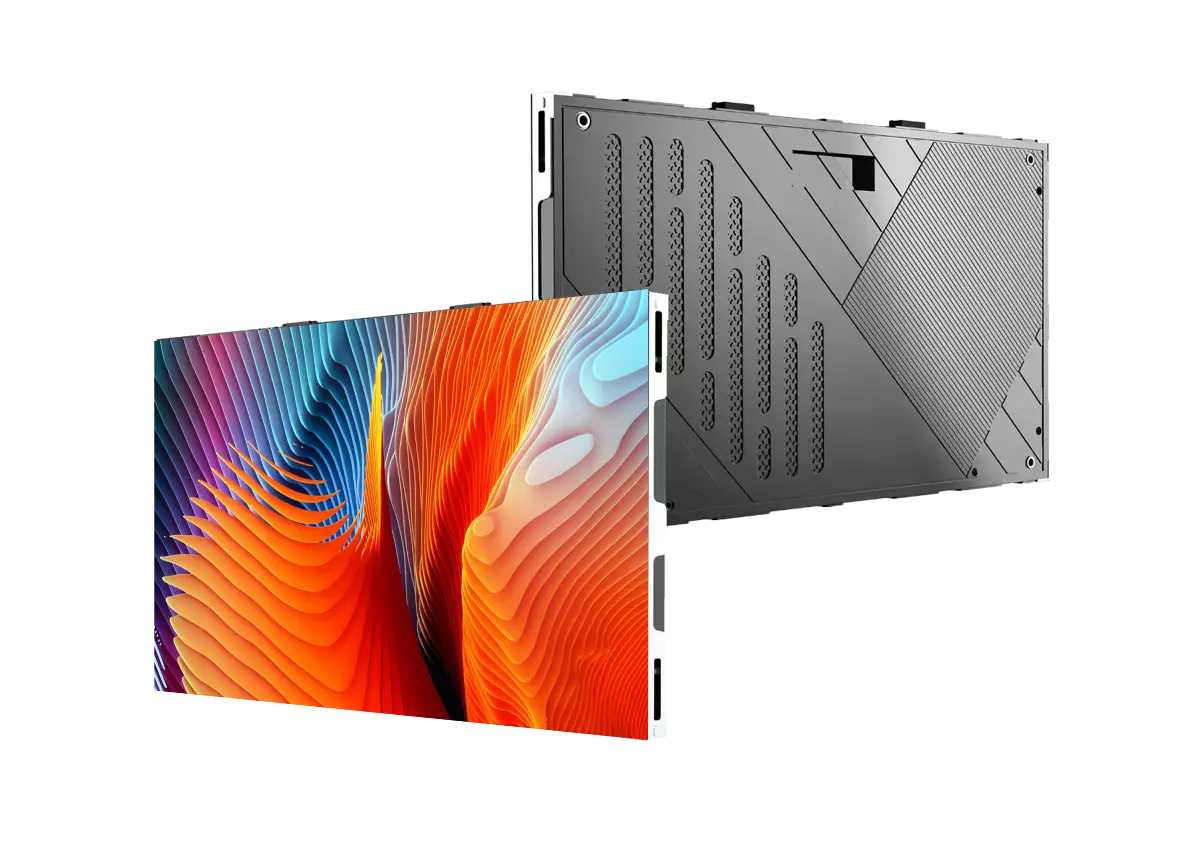

  • Ultra slim led cabinet with thickness 27.5mm, super light weight 4KG/per panel, compatible with different pixel pitch, stable data transmission with a new connector. Choose Glind for your indoor led display supplier!
  • Adopting flip chip technology, no need for wire bonding, stable and reliable, high luminous efficiency, green and energy-saving
  • High contrast ratio, up to 20000:1
  • High grayscale, delicate and realistic images
  • The picture is uniform and consistent, without black lines, achieving true seamless splicing

Pixel Pitch

1.25mm, 1.56mm, 1.875mm, 2.5mm

Seamless Connection & 16:9 Aspect Ratio

The screen is gapless. Meanwhile, when we build a LED screen with 2K, 4K, 8K, or some other resolutions, we can still have a 16:9 screen aspect ratio.

Extraordinary Visual Effects

We adopt great PCB design and high quality LED material. With the high refresh rate(up to 3,840Hz) and gray scale(up to 14bits to 24bits) , the LED display can bring us amazing visual effects.

The light from our SMD LED looks softer to our eyes. Meanwhile, when the SMD LED screen is playing videos or images, the visual impact is more exquisite.

Strong Module for More Secure Installation & Maintenance

When the dust, or other dirt on the LED modules, you can clean it with duster easily. Meanwhile, the LED won't get damaged by slight collision during the installation and transportation.

Longer Lifespan

Thanks to the flip chip technology wireless packaging technology, the heat dissipation for the LED is better, thus the LED works more secure. With the unique feature of the SMD LED ( great reliability and high level surface protection) , the LED display ensures the perfect performance for more than 8 years.

Larger Viewing Angle and Lower Power Consumption

Glind G-SMD Indoor LED screens have 140° horizontal and 140° vertical viewing angle. Whether viewed from the left/right sides or from the top/bottom of the screen, the image remains clear and uniform. And the power consumption is lower than regular LED display products.

G-SMD Products Specifcations

The parameter table is part of the parameters, for more information, please contact us

  Model G-SMD 1.25 G-SMD 1.56 G-SMD 1.875 G-SMD 2.5
  Pixel Pitch 1.25mm 1.56mm 1.875 mm 2.5mm
  Pixel Configuration SMD1010/GOB SMD1010/1212/GOB SMD1010/1515/GOB SMD1515/GOB
  Pixel Density(pixels/m²) 640,000 409,800l 284,444 160,000
  Module Size(mm) 300x168.75 300x168.75 300x168.75 150x337.5
  Module Resolution 240x135 192x108 160x90 60x135
  Cabinet Size(mm) 600x337.5x27.5 600x337.5x27.5 600x337.5x27.5 600x337.5x27.5
 Cabinet Resolution 480×270 384x216 320×180 240x135
 Gray Scale 12-16bit 12-16bit 12-16bit 12-16bit
 Max Power Consumption(W/m²) 350
 Average Power Consumption(W/m²) 100
  Operating Temp/Humidity -20℃-60℃/10%~85%
  Storage Temp/Humidity -30 - 60℃/10% - 85%
  Brightness 600 - 800nits
  Viewing Angle 170°/170°
  Expected LED Lifetime (Max) 100,000 Hrs
 Maintenance Front Service
Swipe left or right to view more content
